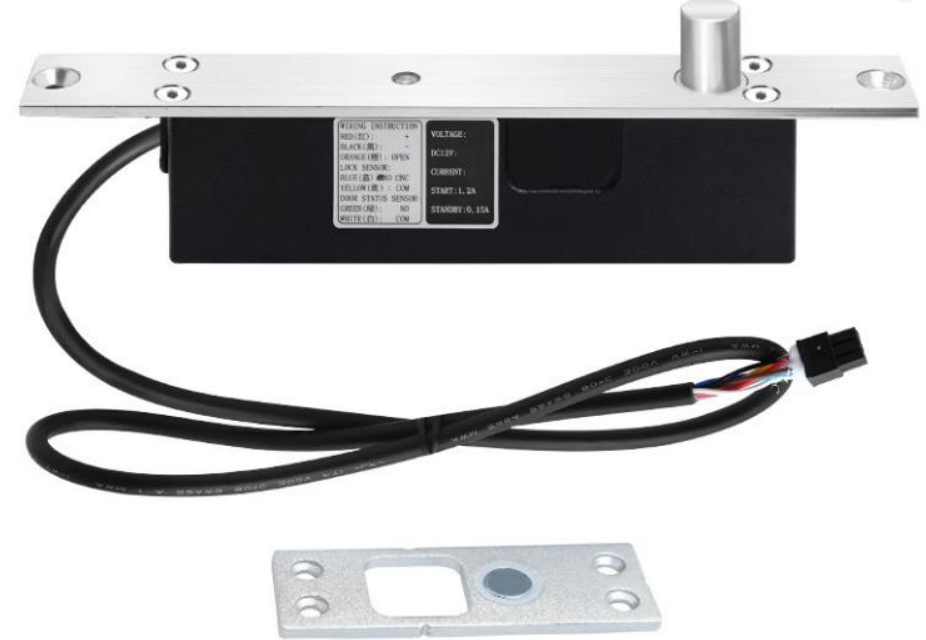

Face Plate: 190Lx25WX37H(mm)
Strike: 132x24Wx34H(mm)
Bolt: 14.5 mm Voltage: 12VDC (DC24V OEM)
Start Current: 1200mA Standby Current: 130mA
Door magnetic feedback signal NO/COM
Lock feedback signal NO/COM/NC
Time Delay: Yes, 0,3,6,9 sec Cable: 750mm
Unlocked (LED Green), locked (LED Red)
For: Woodning Door,Glass Door,Metal Door Fireproof Door
Special Designed: Tested to 500000 cycles
Alloy lock body ,stainless steel panel
Weight: 0.55 kg
