Holding 500kg.
Aluminum, Stainless Steel Bolt.
Testing to 100000 cycles.
High-Temperature Painted,Durable and Beautiful Artical.
CE Certificate by European Union.

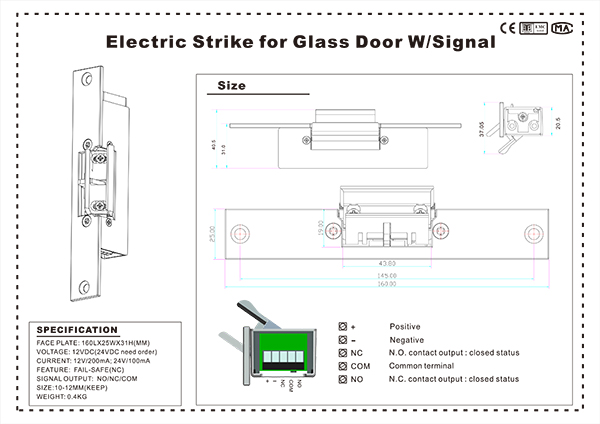

Lock Size:160Lx25Wx31H(mm)
Strike Structure: Stainless Steel
Holding Force: 500kg
Voltage: DC12V or DC24V
Current: DC12V/200mA,DC24V/100mA
Feature: Fail SafeSE-3NC-S
Signal Output: Lock Status OutputNO/NC/COM
Surface Temperature: Within +20℃
Suitable Temperature: -10～+55℃(14-131F)
Operating Humidity:0～90%(non-condensing)
Face plate Housing:Painted Steel
Funtion: Built-out MOV
Glass Thickness: 12-15mm
Opening Mode: 90 Degree Swinging Door
Weight: 0.4kg
