1.Conceal Mounted Lock, with the door state signal feedback ,specially used to normal glass door,wodden door,metal door,fire doors, small doors.
2.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
3.Aluminum alloy material is very durable.
4.Electromagnetic suction work completely, there is no mechanical failure.
5.Shell with high strength alloy material, anode hardening treatment.
6.lock body with double insulation treatment.

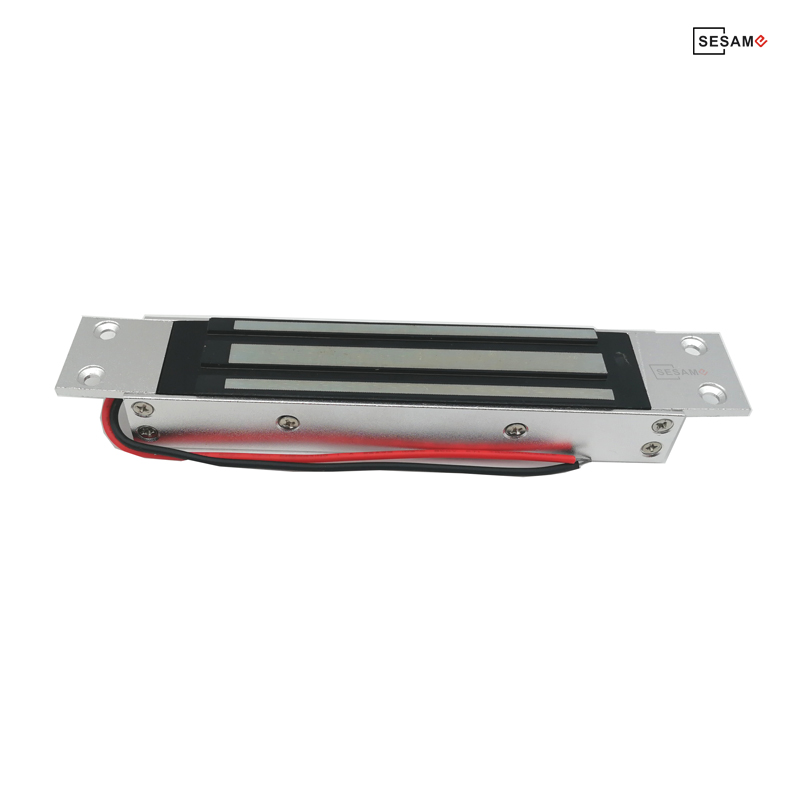

Magnetic Lock, Conceal Mounted
Case: Aluminum alloy
Voltage:DC12V or DC24V
Size:170*38*21mm
Suitable for wooden door,swing door , Metal door, etc
Holding force: 180kg(350lb)
Current Draw:12V 380mA
Weight:1.1 kg
