1. SB-100 is a multi function low temperature electronic door lock with door status signal output,
2. low temperature design, which makes access safer and durable.
3. High-strength aluminum alloy lock body, stainlesss teel lock head
4.which is fail safe electric bot lock that suitable for glass door, wooden door, metal door .

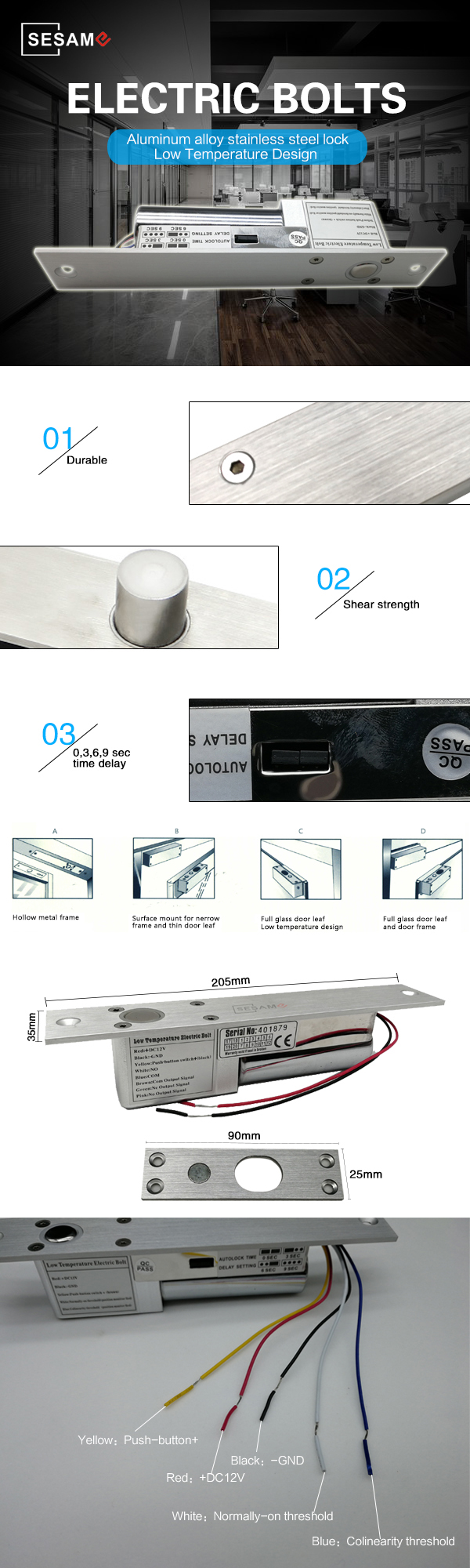

◆Face Plate: 205Lx35WX41.5H(mm)
◆Strike: 90Lx25Wx2H(mm)
◆Bolt: 16mm
◆Voltage: 12VDC Low Temprature
◆Start Current: 900mA
◆Standby Current: 100mA
◆Solid Bolt: Polishing housing, 800Kg Holding Force
◆Suitable For: Woodeng Door,Glass Door,Metal Door
◆Induction Distance: 8mm
◆Face Place Material: High Aluminum,Carrulous Line Finished
◆Optional Bracket: SBK3,SBK5
◆Weight: 0.6 kg
◆SB-100N :Fail Safe Electric Bolt, Normal Temprature
◆SB-100: Fail Safe Electric Bolt
◆SB-100S :Fail Safe Electric Bolt W/Signal NC/CO
◆SB-100T: Fail Safe time delay,0,3,6,9 sec
◆SB-100ST:Fail Safe Electric Bolt W/Signal output & Time Delay 0,3,6,9 se
