Product Description

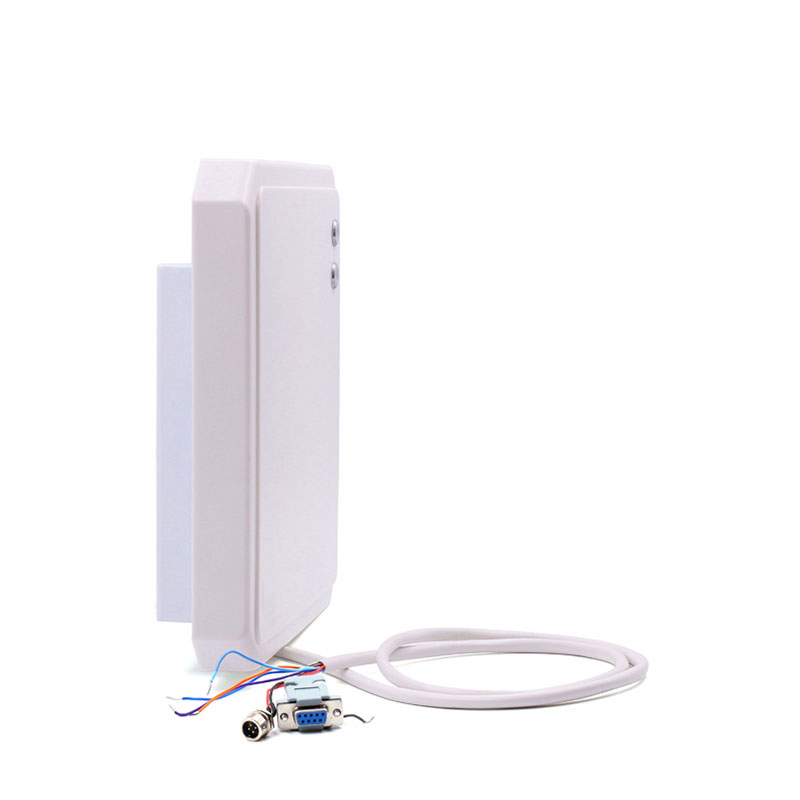

    SR-5109 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

Features

1.      Self-intellectual property;

2.      Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

3.      865~868MHz, 902~928MHz frequency band(frequency customization optional);

4.      FHSS or Fix Frequency transmission;

5.      RF output power up to 30dbm(adjustable);

6.      9dbi antenna (vertical ,circular optional)with effect distance up to 10m~12m^*;

7.      Support auto-running, interactive and trigger-activating work mode;

8.      Low power dissipation with single +9V DC power supply;

9.      Support RS232, RS485, WG26 interface;

* Effective distance depends on antenna, tag and environment.

Characteristics

1.      Absolute Maximum Rating

1.      Electrical and Mechanical Specification

Under T_A＝25℃，VCC＝+12V unless specified

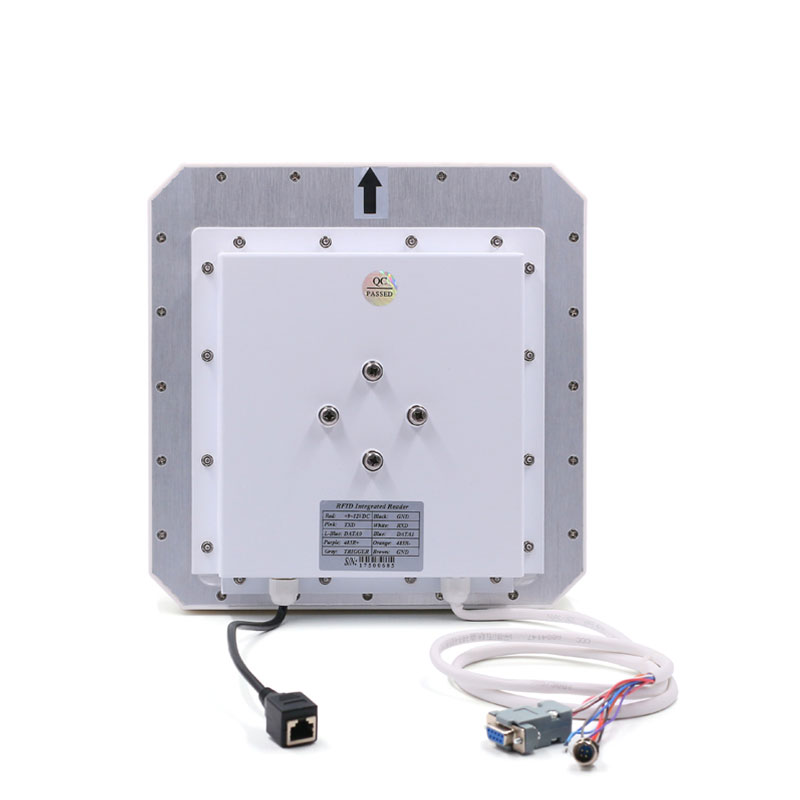

Interface
