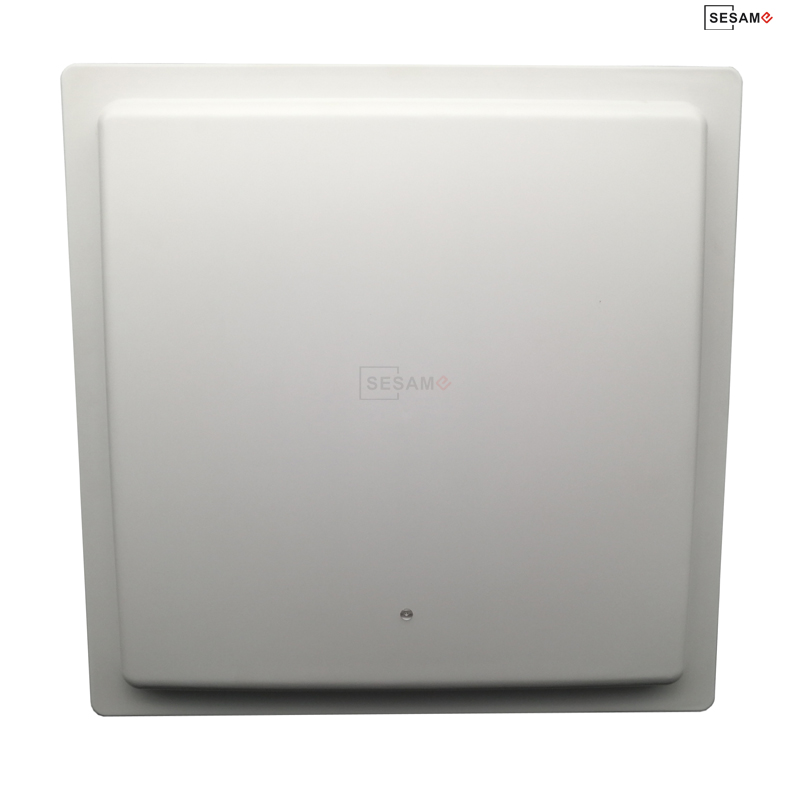

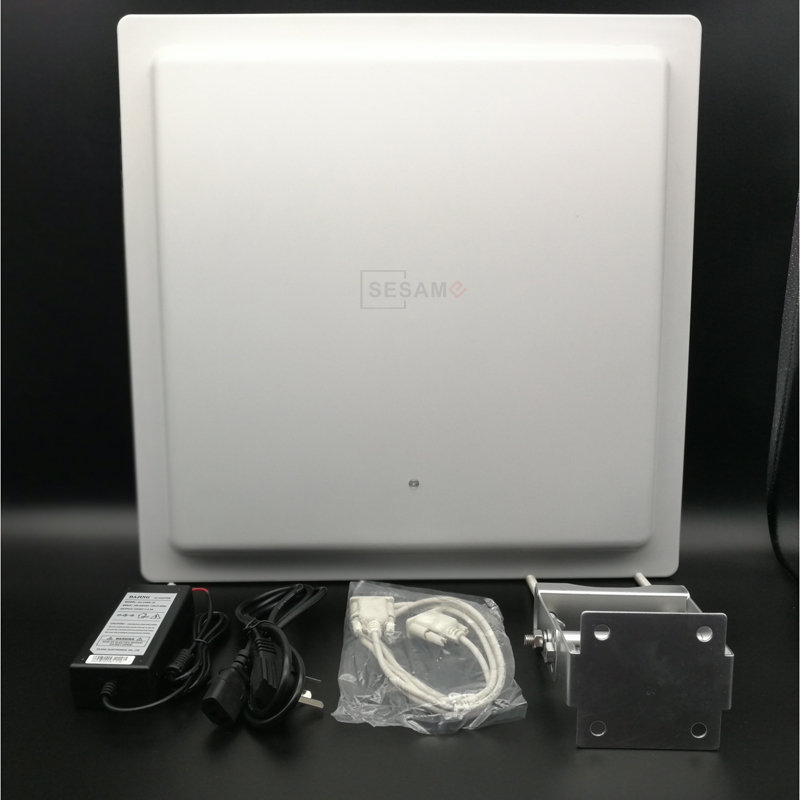

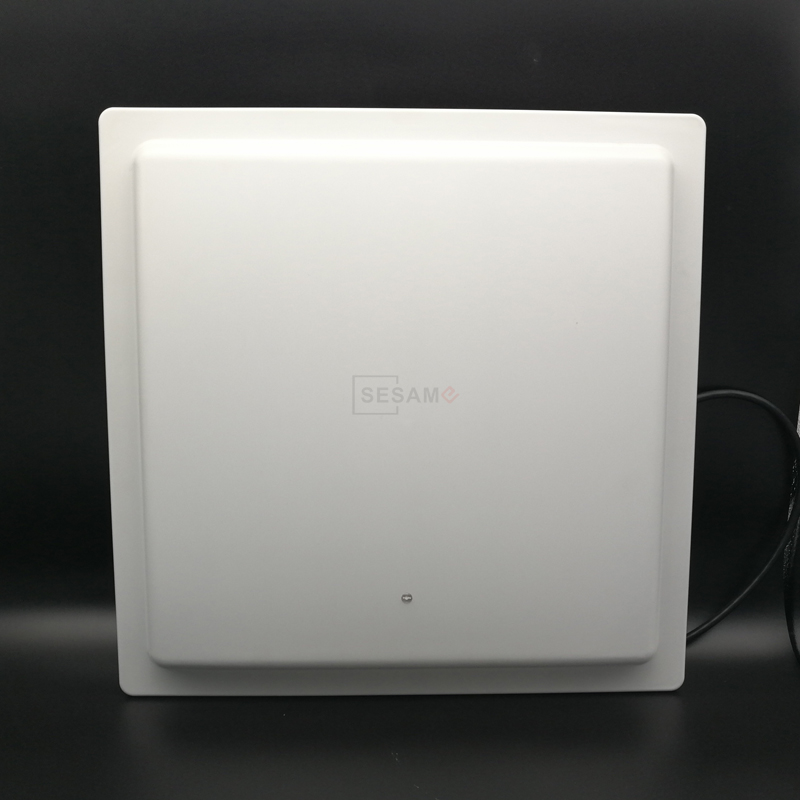

UHF RFID Reader 10-15 meters
Range RS232/UART, RS485,
Wiegand ,Dimensions 445x445x55 mm
Frequency Range 902-928mhz (FCC),865-868mhz (CE)
Product mode explanation
Model | Interface |
SR-1015 | Standard(RS232, RS485, Wiegand) |
SR-1015T | Standard with tcp/ip |
SR-1015W | Standard with Wifi |
| SR-1015TW | Standard with WIFI,TCP/IP |
General Description
SR-1015 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 12dbi antenna optional with effect distance up to 10m~20m*;
7. Support auto-running, interactive and trigger-activating work mode;
8. Low power dissipation with single +9 DC power supply;
9. Support RS232, RS485, Wiegand TCP/IP interface;
* Effective distance depends on antenna, tag and environment.
CHARACTERISTICS
1. Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+55 | ℃ |
Storage Temp. | TSTR | -20~+75 | ℃ |
2. Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC | 350 | 650 | mA | |
Frequency | FREQ | 902 | 928 | MHz |

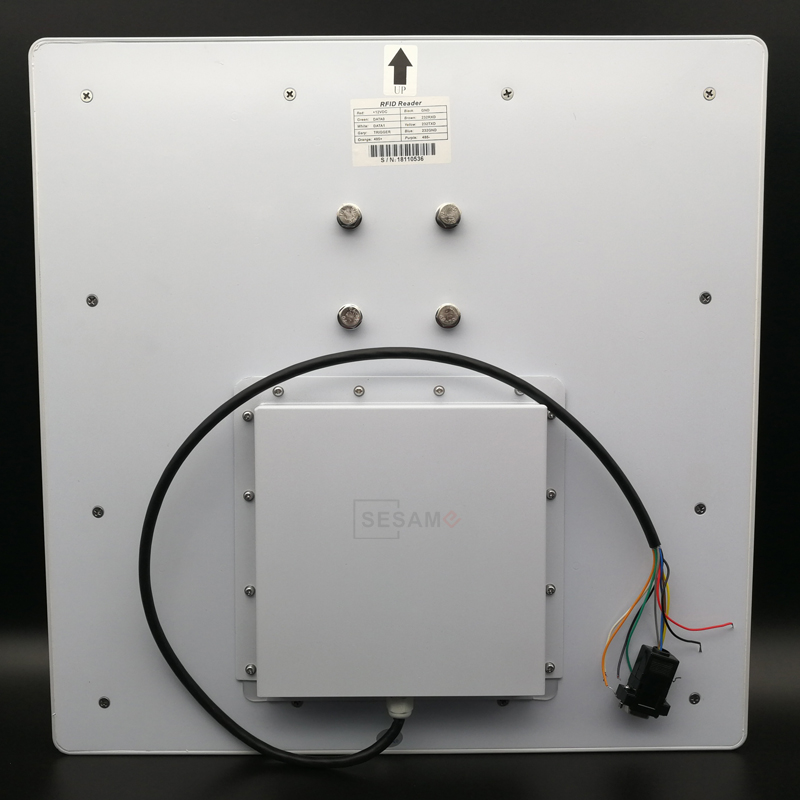

Interface
Item | Comment |
Red | +9V |
Black | GND |
Yellow | Wiegand DATA0 |
Blue | Wiegand DATA1 |
Purple | RS485 R+ |
Orange | RS485 R- |
Brown | GND |
White | RS232 RXD |
Green | RS232 TXD |
Grey | Trigger input（TTL level） |
