Holding 1000kg.


Special design,easy to adjust the distance of the Lock-tongue.


Designed for Metal Frame drill a hole,then install it directly.


Testing to 500000 cycles.


High-Temperature Painted,Durable and Beautiful  Artical.


CE Certificate by European Union.

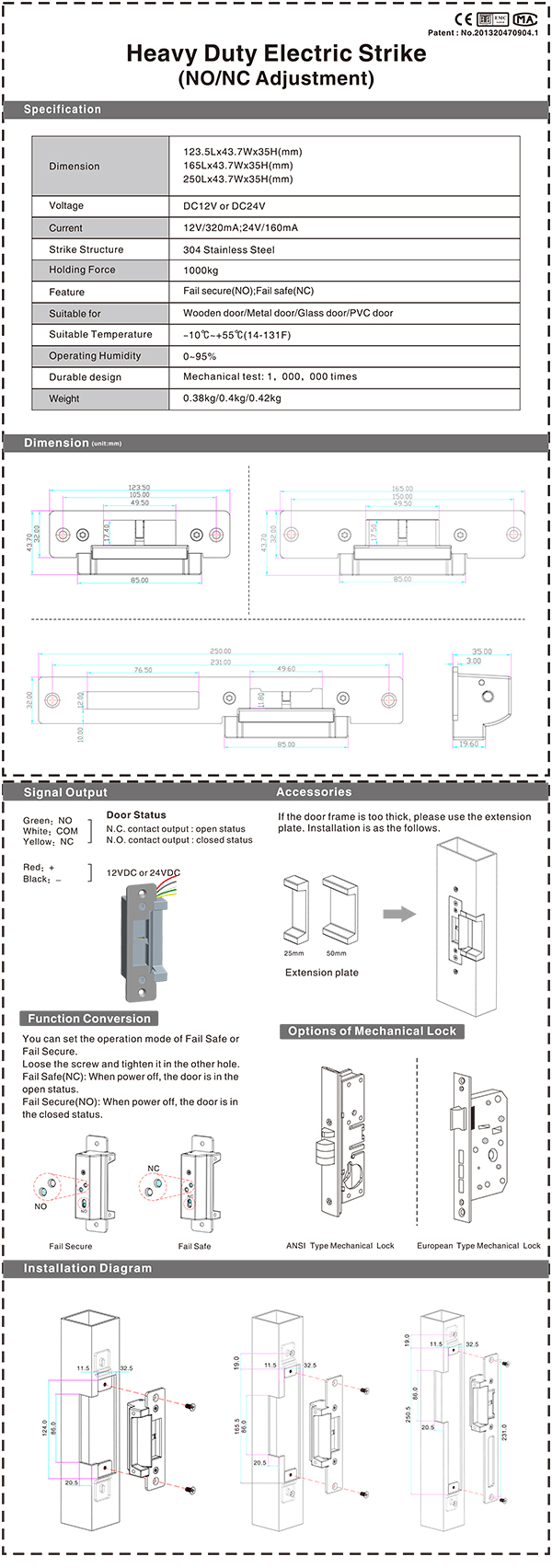

Lock Size:124Lx43.7Wx35H(mm)

Strike Structure: Stainless Steel

Holding Force: 1000kg

Voltage:DC12V (Need Order DC24V)

Current:12V/320mA;24V/160mA

Feature:  Fail Secure(YS-138NO); Fail Safe(YS-138NC)

Suitable For: Wooden Door,Metal Door,PVC Door

Surface Temperature: Within +20℃

Suitable Temperature: -10~+55℃(14-131F)

Operating Humidity: 0~90%(non-condensing)

Face plate Housing: Painted Steel

Function: Built-out MOV

Weight:  0.455kg
