Holding 300kg.


Special design,easy to adjust the distance of the Lock-tongue.


Designed for Metal Frame drill a hole,then install it directly.


Testing to 100000 cycles.


High-Temperature Painted,Durable and Beautiful  Artical.


CE Certificate by European Union.

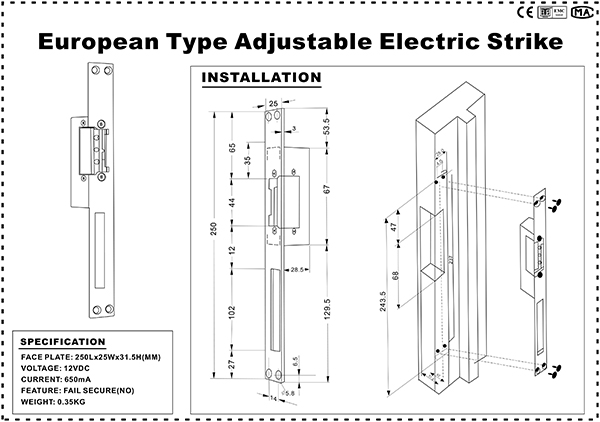

SE-4NOL Manual.jpg

Lock Size: 250Lx25Wx31.5H(mm)

Strike Structure: Zinc die-casting

Holding Stength: 300kg

Voltage: DC12V

Current: 50mA

Special Design: Adjust Lock-tongue to NO style

Suitable For: Narrow Wooden Door,Narrow Metal Door

Surface Temperature: Within +20℃

Suitable Temperature: -10~+55℃(14-131F)

Operating Humidity:  0~90%(non-condensing)

Face plate Housing:  Surface by coating nickel

Function: Built-out MOV

Weight: 0.35kg
