1.Conceal Mounted Lock Signal Output, with the door state signal feedback ,specially     used to normal glass door,wodden door,metal door,fire doors, small doors.

2.Built-in reverse current protection device (MOV), performance stability ,safety  coefficient is higher.

3.Aluminum alloy material is very durable.

4.Electromagnetic suction work completely, there is no mechanical failure.

5.Shell with high strength alloy material, anode hardening treatment.

6.lock body with double insulation treatment.

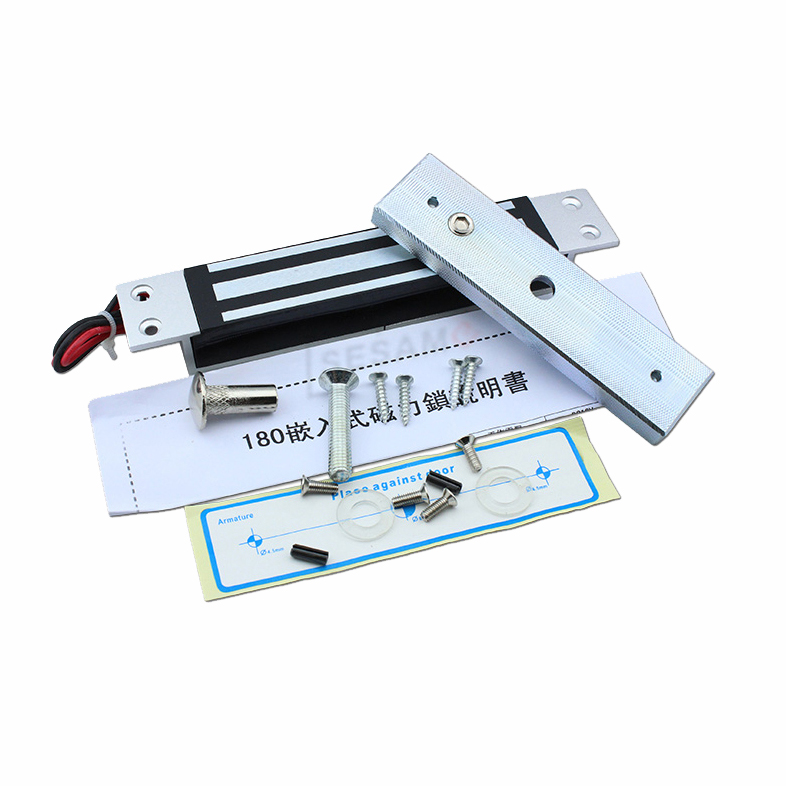

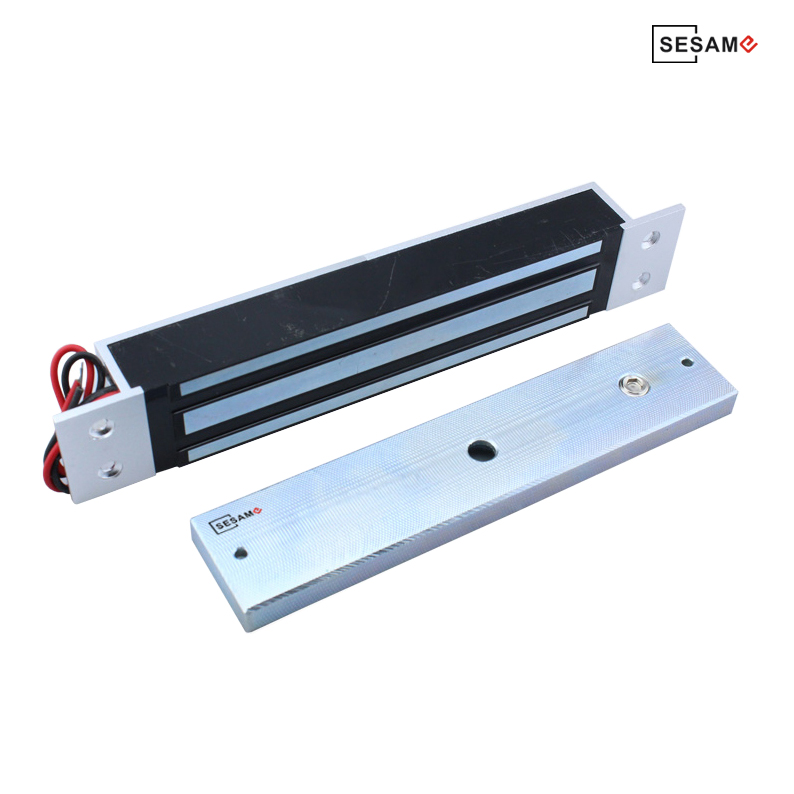

Magnetic Lock, Conceal Mounted, Signal Output

Case: Aluminum alloy

Voltage:DC12V or DC24V

Size:250*47*25(mm )

Suitable for wooden door,swing door , Metal door, etc

Holding force: 280kg(600lb)

Current Draw:12V 480mA

Weight:1.8kg
