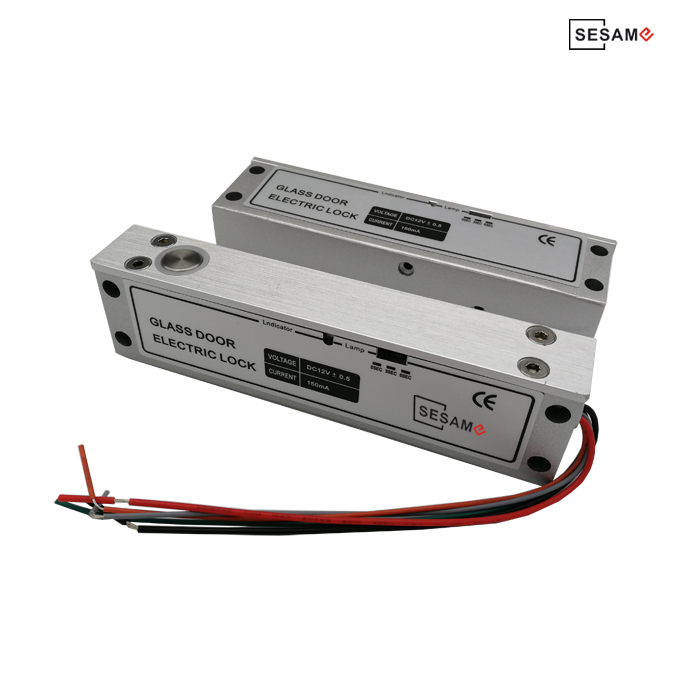

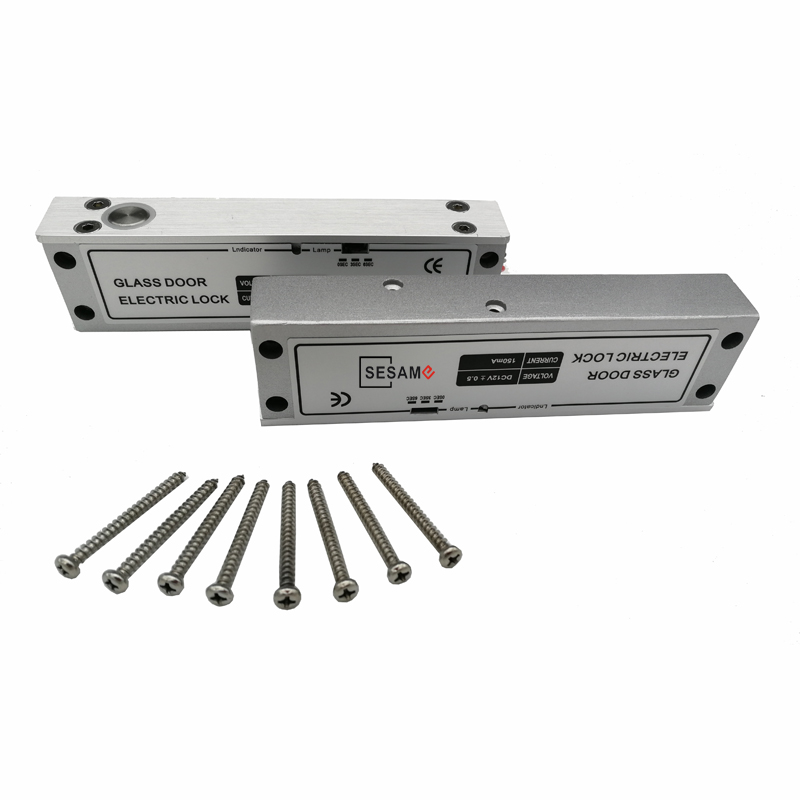

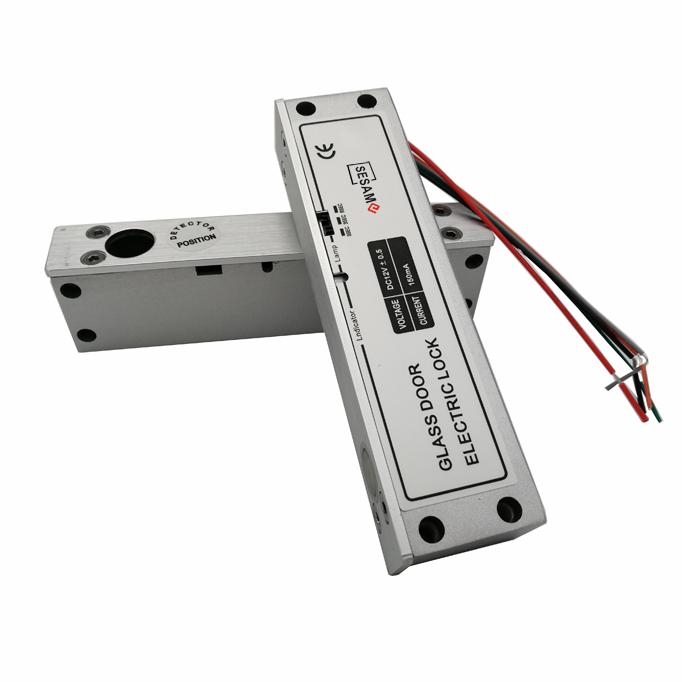

1. professional electric bolt lock for frameless glassdoor, Full solid aluminum alloy lock and lock    body, durable.

2. Ultra-low temperature design, less heat is safe andreliable.

3.Electric Frameless Glass Door Lock  suitable for glass doors, wooden doors, metal doors, fire doors.

4.Lock body are made of high hardness corrosion resistant aluminum alloy.

5.Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving.


Face Plate: 150Lx25WX37H(mm)

Strike: 150Lx25WX37H(mm)

Bolt: 15mm Voltage: 12VDC

Start Current: 900mA

Standby Current: 120mA Signal: Yes

Time Delay: Yes, 0,3,6,9sec Open Wire: Yes

Solid Bolt: Polishing housing, 1000Kg Holding Force

Suitable For: Woodeng Door,Metal Door, Fireproof Door

Induction Distance: 8mm

Special Designed: Tested to 500000 cycles

Face Place Material: High Aluminum,Carrulous Line Finished

Weight: 0.7kg
